MULTRON DT-01 Pro
DT-01 Pro Two-Wheel Differential Mobile Robot
Industrial medium-duty robot for automation of logistics and transportation in premises.
Applications
Medium production facilities, warehouses, service industry, education
Features
- Automatic charging
- dynamical avoidance
- mapping up to 50,000 m2
Technical specifications
Series
DT
Full Name
DT-01 Pro Two-Wheel Differential Mobile Robot
Type/Category
Two-wheeled differential robot
Appointment
Industrial medium-duty robot for automation of logistics and transportation in premises.
Dimensions (WxW), mm
730×460×260
Weight, kg
46
Maximum speed, m/s
1.5
Load capacity, kg
120
Working hours, h
4
ACB voltage, B
24
Capacity of ACB, Ah
20
Type of movement
Differential drive, rotation in place
Navigation
2D SLAM Laser Navigation
Communication Protocols
RS-232, ROS, MQTT, Modbus TCP
Protection
IP22
Operating temperature, °C
-10 до +60
Features
Automatic charging, dynamic obstacle avoidance, mapping up to 50,000 m2

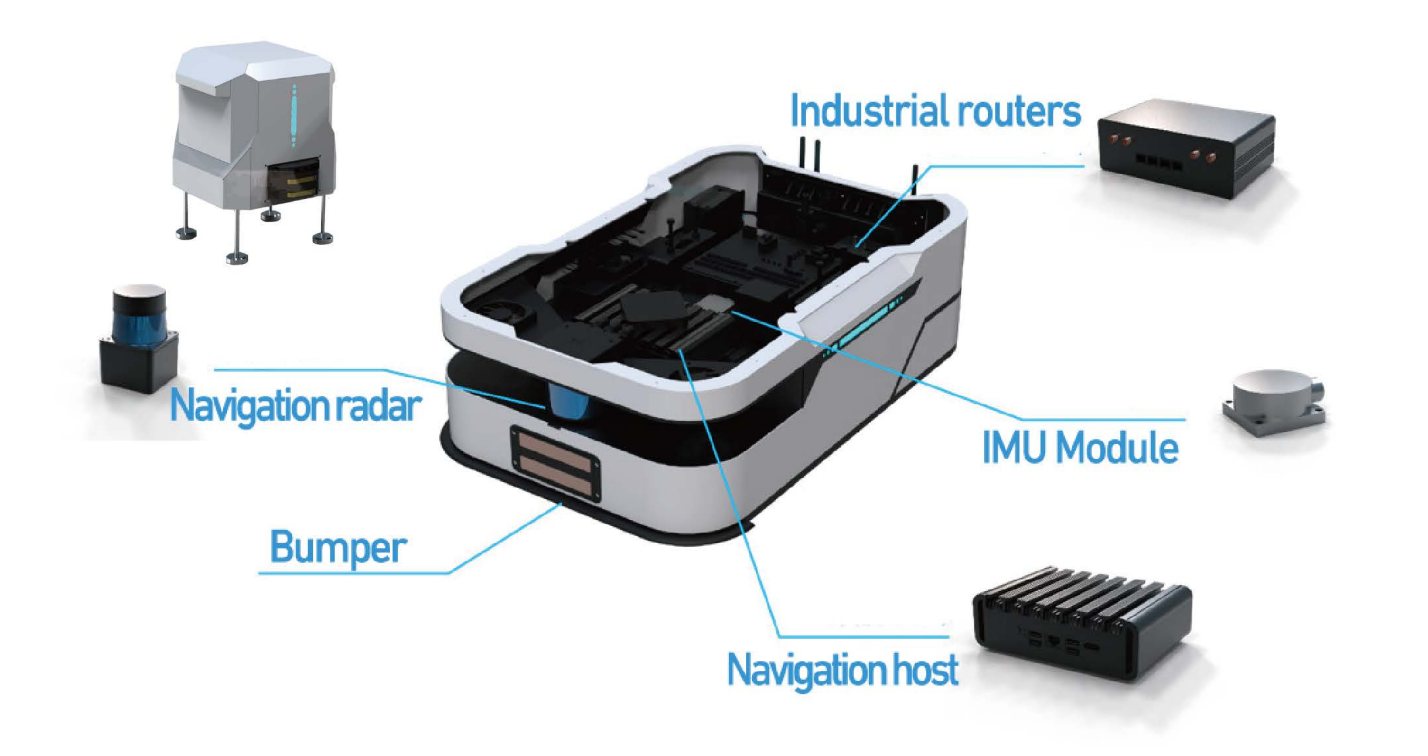

Sensors
2D LiDAR, IMU, bumper, industrial router, navigation radar
Application
Medium production facilities, warehouses, service industry, education
